Grilled Stall Gate

Name: Grilled Stall Gate
Brand: American Stalls
Price: 340.0 USD
Availability: InStock

$340.00

| /

Recommended by 98% Clients

Installation Hardware Included

Pre-Orders Ship July 22

Our Grilled Stall Gates are a modern and minimalistic take on traditional stall gates. It is inspired by a simple, yet exceptionally elegant design often found in coastal horse barns. Our Grilled Stall Gate is perfect for any horse barn as it features a low profile design, attractive mesh bottom, and a shavings guard. It is a perfect horse stall door for all horse breeds. Rest assured, our Grilled Stall Gate will add refined elegance and functionality to your barn.

In-stock 100% Secure Checkout

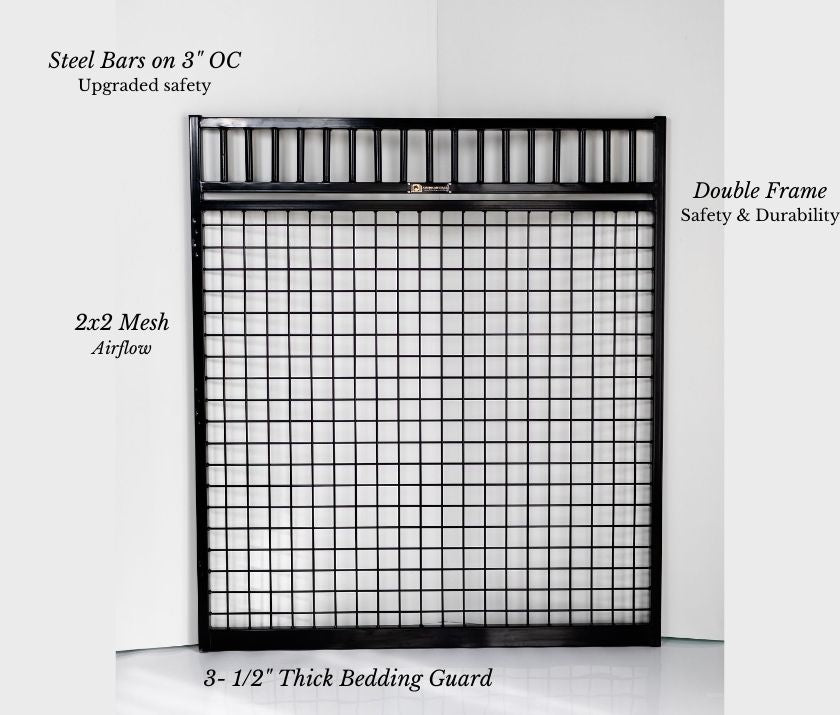

Specifications

Pre-galvanized steel and black powder coat finish provide superior rust protection

Mesh bottom increases airflow

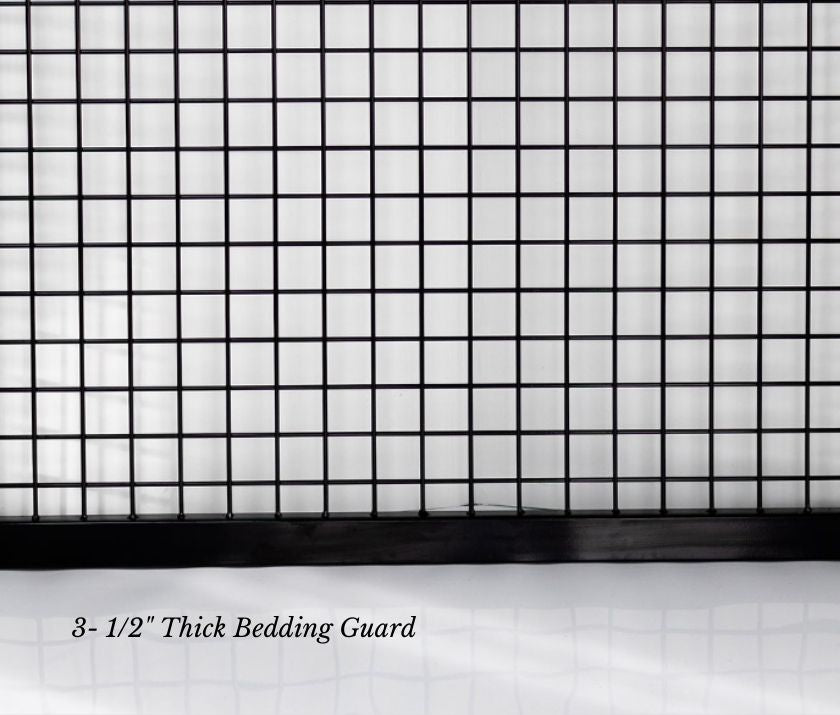

Shavings Guard to keep bedding inside horse stall.

Heavy-duty steel materials ensure ultimate strength

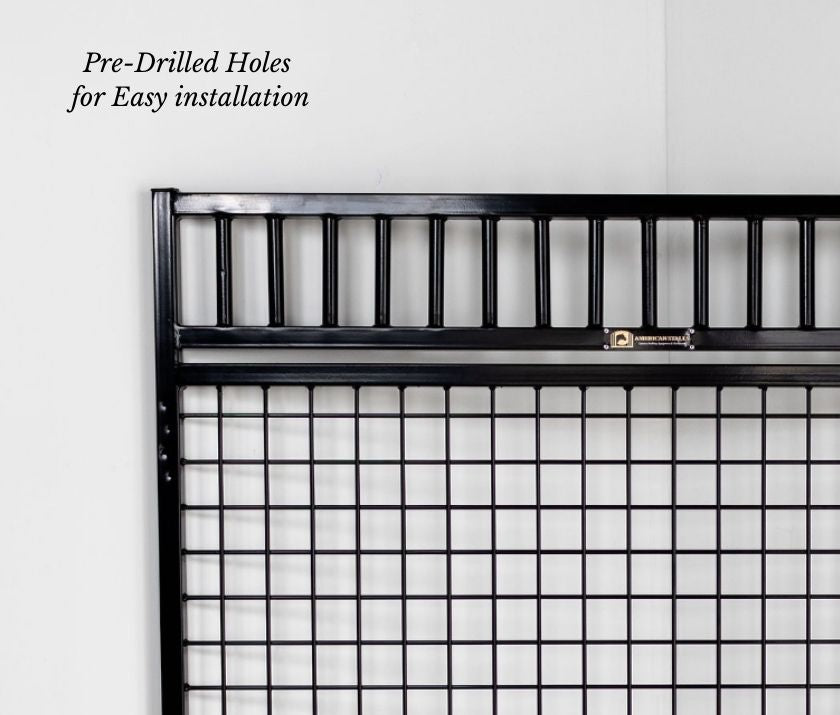

Pre-drilled holes for easy and quick installation

The Steel

Frame:	15-GA steel
Bars:	16-GA steel
Mesh:	3-GA steel
Steel Treatment:	Pre-galvanized steel
Weld Treatment:	Zinc-rich primer on all welds
Finish:	Black powder coat finish

Steel bars are evenly spaced 1.5″ apart
Steel bars are fully welded inside frame
90º Steel Mesh with 2″ x2″ openings

Measurements

Width:	51″ W
Height:	58″ H
Weight:	64.8 lbs.

Installation Information

Pre-drilled holes for easy, quick installation
Installation hardware included in packaging
Installation hardware includes three (3) hinges, carriage bolts, wood screws, screw eye, carabiner clip, and gate chain

Recommendations

Perfect for new barn construction to use as standalone horse stall door.
Perfect for renovations to place behind an existing sliding horse stall door or behind an exterior Dutch Door.
Perfect for small and large breeds alike.
The top most point of this door is 58” tall so it will sit chest-level for most large, regular-sized horse breeds.
This Grilled Stall Gate will still allow visibility and airflow if used for smaller horse breeds.

Shipping Information

All stall gate orders are shipped using the most efficient LTL (less-than-truckload) method.
All orders are shipped FOB Baltimore, MD
Shipping rates are calculated by weight and size of each gate when added to your order
In-stock orders ship within 4-5 business days. Longer lead times may apply based on availability.
Larger orders and custom orders are subject to shipping fees other than the designated flat rate fee.
Customer is responsible to unload stall gate order’s pallet from LTL box truck. Liftgate charges may apply.

Truck Freight Shipments

Client or a designated individual (by the client) must be present to accept American Stalls order and offload order.
Smaller orders can be unloaded by hand. Carriers provide a life gate, but are subject to surcharges.
Larger orders require forklift (at customer expense) available through a local rental company. Your delivery appointment will be scheduled with the carrier in advance.

FAQs

I don’t live in Virginia, can I still purchase these stall gates from American Stalls?

Yes, absolutely! We are located in Northern Virginia, but our clients are all across North America including United States, Canada, and Mexico. Our team will help you coordinate the best shipping method for your horse stall equipment.

Are these Stall Gates heavy?

Compared to other Stall Gates on the market, our Stall Gates tend to be “heavy.” This is because we build our Stall Gates to be extremely heavy-duty. We use strong steel tubing and mesh for each component to ensure it holds up to the rigors of your barn.

How tall is the Grilled Stall Gate?

Our Grilled Stall Gate is 58” tall. This measurement is from the bottom-most frame to the top-most frame.

Would you recommend the Full-Sized Stall Gate or the Grilled Stall Gate?

To begin, the main two differences are the gates’ dimensions and the top designs. Our Full-Size Stall Gate is 65” tall, but the bottom of the yoke begins at roughly 48” tall. In contrast, our Grilled Stall Gates are 58” tall without a yoke opening. Your decision will ultimately depend on multiple factors and your personal preference. Our Grilled Stall Gates were designed to be standalone horse stall doors that promote a simple, yet timeless look. This design is particularly particular among barns that feature English disciplines. In contrast, our Full-Sized Stall Gate is a more traditional stall gate design.

Are these Stall Gates difficult to install?

Our Stall Gates are exceptionally quick and easy to install. We pre-drill holes on one-side of each stall gate. We also place our logo on both sides of each stall door. This allows you to flip the stall gate to accordingly install as you need. We also provide all of the necessary installation hardware including hinges, bolts, screws, a screw eye, carabiner clip, and gate chain. Most clients are able to install our stall gates without a general contractor. Each gate usually takes no more than 15 minutes to install.

Our door opening is 48” and the Stall Gate is 51” wide. How can I fit it in the door opening?

Our Stall Gates are 51” wide, but our clients install into smaller door openings all the time. We have seen our clients successfully and safely install our Stall Gates into openings ranging from 43” wide to 52” wide. If you have an existing sliding stall door, we would recommend to mount our Stall Gates on the stall’s interior to swing into the stall. If you have flexibility, you can then mount our Stall Gates on either the horse stall’s exterior or interior.

During installation, how much space should I leave for the door’s opening?

We always recommend to leave at least 1” between the Stall Gate’s bottom frame and your floor. This will ensure enough clearance for your Stall Gate to seamlessly operate. If you install the Stall Gate flush into a door opening, we then recommend roughly an additional 1-1/2” between the door frame and your wood post.
